Summary
Toward a diversified low-carbon future, the geological storage of carbon dioxide (CO2) and hydrogen (H2) is regarded as a key enabler for an industrial-scale implementation. However, many geological formations, such as depleted oil and gas reservoirs, can contain inherent traces of organic molecules that dramatically affect their storage capacities and caprock sealing efficiency. Hence, using the right analysis to accurately determine the caprock sealing efficiency and storage capacity in the presence of organics is crucial for a secure and safe storage process. This study analyzed the sealing potential of a proxy caprock (mica) by calculating the capillary entry pressure and static column height of CO2 and H2 using previously published contact angle measurements. In addition, the effects of key parameters such as pressure (up to 25 MPa), temperature (308 K, 323 K, and 343 K), and pore throat size ( = 5 nm and 10 nm) were demonstrated, along with those of organic acids (lignoceric acid C24, stearic acid C18, lauric acid C12, and hexanoic acid C6) and alumina nanofluids, on the wettability, capillary sealing efficiency, and static column height of the gas. The results indicated that the sealing efficiency and storage capacity for CO2 and H2 decrease with the increase in pressure and surface concentration of organic acid but increase with the increase in temperature. The analysis demonstrated a theoretical inverse relationship between the capillary entry pressure and the pore throat radius. Thus, the smaller the pore size, the more suitable the conditions for sealing and storage capacity. Furthermore, the wettability and sealing efficiency of the organic-aged mica/CO2 system were improved by the addition of nanoalumina, with an optimal nanofluid concentration of 0.25 wt%. In a nutshell, this work has provided a detailed theoretical workflow for assessing the influence of various parameters on the wettability, sealing efficiency, and storage capacity of mica substrates (as a proxy caprock) for the safe and secure geological storage of H2 and CO2.
Introduction
Due to the rapid increase in world population, the global demand for energy has increased gradually over the past century and is anticipated to rise by 40% by 2040 (Rahbari et al. 2019; Ali et al. 2022a,Ali et al. 2021b; Aslannezhad et al. 2023). This energy demand is primarily fulfilled by fossil fuels, such as oil, natural gas, and coal (Speight 2011; Bavel 2013; Peterson 2017; Hogerwaard et al. 2020). Moreover, fossil fuels are expected to continue as the primary source of energy for the next 30 years (Wogan et al. 2019). However, the consumption of fossil fuels is causing high emissions of greenhouse gases (GHGs), especially CO2, into the atmosphere, thus having a negative effect on the Earth’s climate (Bui et al. 2018; Vahrenkamp et al. 2021; Shar et al. 2022). According to a mutual report from the National Aeronautics and Space Administration and the National Oceanic and Atmospheric Administration, the average temperature of the Earth increased by 0.99°C (1.78°F) in 2016 compared with that observed in the mid-twentieth century (Potter et al. 2017). Therefore, governments worldwide are committed to adopting strict environmental regulations and decarbonization strategies to curb the excessive emissions of GHGs by building a diversified low-carbon-based economy (Masson-Delmotte et al. 2019; Mohanty et al. 2021).
The existing plans for decarbonization rely on improving industrial technology to enhance the efficiency of carbon capturing and sequestration and promote clean energy conversion from renewable resources such as solar, wind, and geothermal (International Energy Agency 2018; Masson-Delmotte et al. 2019; Mikunda et al. 2021). Hydrogen is presently emerging as a promising clean fuel that can support the decarbonization process by converting energy from fossil fuels into a more environmentally friendly form (referred to as blue hydrogen) and effectively storing clean energy from renewables (referred to as green hydrogen) to overcome their intermittent supply issues (Cuce et al. 2016; Edelenbosch et al. 2017; Lazarou et al. 2018; McPherson et al. 2018; Hordeski 2020; Moustakas et al. 2020; Alanazi et al. 2022d). Hydrogen (H2) can be produced via processes such as electrolysis (Shiva Kumar and Himabindu 2019; Dawood et al. 2020; Alanazi et al. 2022b), bi-methane reformation (Chen et al. 2020; Mohanty et al. 2021), and biomass gasification (Shayan et al. 2018; Cao et al. 2020). However, wide-scale implementation of an H2-based economy requires a medium with a large storage capacity, which can be theoretically offered by geological formations such as deep saline aquifers, depleted oil and gas reservoirs, and salt caverns (Heinemann et al. 2021; Zivar et al. 2021). Although the geological formations can serve as a feasible storage medium, their storage efficiency is greatly impacted by underground conditions, rock type, and trapping mechanisms (Tarkowski 2019).
The geostorage of CO2 for sequestration is well exploited and recognized in the industry, while underground H2 storage is still under investigation (Heinemann et al. 2018; Hassanpouryouzband et al. 2021; Krevor et al. 2023). While CO2 for disposal is typically injected in its supercritical form (as no withdrawal is required), underground H2 storage involves cycles of injection and reproduction for periods of peak demand, with the requirement of a cushion gas to maintain a safe hydrostatic pressure (Ma et al. 2019; Zivar et al. 2021). In the latter case, the captured CO2 can be used as the cushion gas to support H2 withdrawal (Oldenburg 2003; Oldenburg and Pan 2013; Alanazi et al. 2023a, 2023b). The trapping mechanisms for both gases in the geological formations are relatively similar and include structural trapping, residual trapping, dissolution trapping, and mineral trapping (Al-Khdheeawi et al. 2020, 2021; Amarasinghe et al. 2021; Yekeen et al. 2021). Among these, structural trapping and residual trapping are the main trapping mechanisms and are dictated by the capillary forces of the fluids within a rock and the interfacial forces between the fluids and formation rocks (Iglauer et al. 2015; Ali et al. 2020a, 2023; Abdulelah et al. 2021; Al-Yaseri et al. 2021; Alanazi et al. 2022a). When a gas is injected for storage, it displaces the wetting phases (typically formation fluids) within the rock pores depending on the receding contact angle, such that capillary leakage can occur at > 90° (Broseta et al. 2012; Iglauer et al. 2015; Alanazi et al. 2022c). Thereafter, a free gas plume begins to move upward due to buoyancy, accumulates under an overlaying formation layer of poorly permeable rocks (i.e., caprock), and is trapped by the high capillary pressure exerted by the gas column against the buoyancy pressure (Wu et al. 2020; Hosseini et al. 2022; Zhang and Wang 2022). Furthermore, when the gas injection is stopped, the wetting phase column exerts a backpressure on the nonwetting phase, and the gas resides as clusters in a process called residual trapping; this is related to the advancing contact angle, whereby the wettability does not affect the primary drainage when < 50° (Chiquet et al. 2007; Al-Menhali and Krevor 2016; Rahman et al. 2016). Thus, typical geological storage formations are characterized by an overlying layer of very low-permeability caprocks, which are often formed from shale, anhydrite evaporates, or salt of very low permeabilities ranging from 10–23 to 10–19 m2 (Armitage et al. 2011; Haldar and Tišljar 2014). The caprock permeability typically decreases with porosity and pore throat radius and increases with clay mineral content (Rezaeyan et al. 2015; Hosseini et al. 2022). The capillary entry pressure of a caprock affects the sealing efficiency of the geologically stored gases (i.e., CO2, CH4, and H2) (Espinoza and Santamarina 2017) and nuclear waste (Mallants et al. 2001). It also affects gas migration from unconventional source rocks (Yu et al. 2018; Wu et al. 2020).
In this work, the theoretical capillary sealing efficiency and CO2/H2 storage capacity of a proxy caprock (mica) are investigated for the first time as a function of pressure, temperature, and organic acid content. An extensive laboratory measurement was carried out to study CO2 and H2 wettability using mica samples under various storage conditions (i.e., pressures and temperatures of up to 25 MPa and 343 K), published by Arif et al. (2016), Ali et al. (2021c), and Ali et al. (2022b). The analysis framework discussed in this paper demonstrates the impact of key parameters on the capillary sealing efficiency and CO2/H2 storage capacity in the presence of organic acids and nanofluids. The calculations assess the effectiveness of injecting alumina oxide nanoparticles before CO2 storage in altering the mica wettability and mitigating the effects of high concentrations of organic acid, thereby improving the sealing efficiency of the caprock (Ali et al. 2021a). In the current work , the aim is to provide a fundamental analytical approach for understanding the wetting characteristics and sealing efficiency of a caprock, along with the potential containment security issues and potential mitigation techniques, as applied to H2 and CO2 wettability, which are essential for the success of carbon capture and sequestration and underground H2 storage operations.
Methodology
Wettability is defined as a measure of the interaction between a fluid (usually a liquid, e.g., water or brine) and a solid surface (e.g., a rock) in the presence of another fluid (usually a gas) and is represented by the contact angle (θ) (Adamson and Klerer 1977). One type of θ is the dynamic contact angle, which is measured either during imbibition (the wetting phase displacing the nonwetting phase) or during drainage (the nonwetting phase displacing the wetting phase) when it is correlated with the advancing contact angle () and the receding contact angle (), respectively, as shown in Fig. 1a . While the dynamic contact angle is a technique to measure the three-phase contact line under dynamic conditions, the static contact angle is measured when the interface between the two fluids is not in motion, as shown in Fig. 1b .
Schematic diagrams of the solid/liquid/gas interfacial forces on a drop of liquid on a solid surface, showing (a) the dynamic (receding and advancing) contact angles obtained from a tilted surface and (b) the static or equilibrium contact angle on a horizontal surface.
Schematic diagrams of the solid/liquid/gas interfacial forces on a drop of liquid on a solid surface, showing (a) the dynamic (receding and advancing) contact angles obtained from a tilted surface and (b) the static or equilibrium contact angle on a horizontal surface.
In the literature, Ali et al. (2021c) measured the dynamic contact angles for mica/H2/brine and Arif et al. (2016) measured the same for mica/CO2/brine, under geological storage conditions (5 MPa, 10 MPa, 15 MPa, and 20 MPa; 308 K, 323 K, and 343 K) at a brine salinity of 10 wt% NaCl for pure mica substrates. The measurements were acquired using the tilted-plate method (Lander et al. 1993), described next in Procedure for Contact-Angle Measurements Using the Tilted-Plate Method, for organic-aged mica substrates. Other techniques have been applied to measure the dynamic contact angles for H2 and CO2 such as the captive bubble method and a microfluidic-based method. van Rooijen et al. (2022) measured the dynamic contact angles at room temperature and 10 bar pressure using microfluidics. The obtained measurements by van Rooijen et al. were found to be comparable with the experimental measurements provided by Hashemi et al. (2021), who used the captive bubble method in experiments. To provide a theoretical and fundamental analysis using the wettability measurement, we applied Laplace’s equation (Derrell A. 1966) to calculate the capillary entry pressure () and the maximum height of the gas column () using interfacial tension (IFT) data between liquid and gas (), density difference, and an effective pore throat radii ( = 5 nm and 10 nm, detailed in Procedure for Contact-Angle Measurements Using the Tilted-Plate Method).
Procedure for Contact-Angle Measurements Using the Tilted-Plate Method
The contact-angle measurement system is shown schematically in Fig. 2 . The dynamic advancing () and receding () contact angles were measured using a high-pressure, high-temperature (HPHT) cell and a tilted-plate sample container (Al-Anssari et al. 2016; Ali et al. 2020b; Alanazi et al. 2023b). The HPHT cell was composed of Hastelloy to withstand temperatures and pressures of up to 423 K and 60 MPa. The sample plate was tilted at angles of 15–17° (Al-Yaseri et al. 2022a). The HPHT cell was connected to two high-precision ISCO syringe pumps (supplied by Teledyne ISCO D-260) with a pressure accuracy of 0.01%. The brine was pumped into the cell, followed by injection of the gas (CO2 or H2). The mica sample was then placed on the sample holder at a tilt angle of 17°, the HPHT cell was isolated and sealed, and the gas was injected at a steady rate until the required testing pressure and temperature were reached. The temperature was controlled by heating the fluid in ISCO pumps using Model 900 F heating baths (Julabo), while the cell temperature was controlled using a strip heating tape (HTC101-002; Omega Company) (Ali et al. 2022d). Once the HPHT cell was filled with the gas, the pressure was equalized to the desired testing pressure by using two ISCO pumps. Then, a needle was used to introduce a droplet of brine (5.4 µL ± 0.77 µL) onto the surface of the tilted mica substrate via a third ISCO pump. Once the brine droplet touched the substrate surface, the two dynamic contact angles ( and ) appeared at the two tails of the droplet and were recorded using a high-speed camera (Fujinon CCTV lens, Basler scA 640–70 fm; HF35HA-1B; frame rate = 71 fps; 1:1.6/35 mm, pixel size = 7.4 μm) (Arif et al. 2016; Al-Yaseri et al. 2017; Yekeen et al. 2021). ImageJ software was used to determine the contact angles by analyzing the droplet images. The measurement was repeated three times for all the desired testing conditions, and the mean values showed an overall standard deviation of ±5° at 25 MPa and ±3° at 0.1 and 15 MPa (Ali et al. 2020a, 2021a).
Schematic diagram of the tilted-plate contact-angle measurement system: (1) gas cylinder (H2 or CO2); (2) HPHT ISCO pump for gas flow control; (3) HPHT reactor for mixing the live brine; (4) HPHT ISCO pump for controlling the brine flow; (5) IFT Hastelloy cell with a tilted plate inside; (6) HPHT ISCO pump for controlling the gas flow inside the cell; (7) light source; (8) side view of the IFT Hastelloy cell; (9) high-resolution camera; (10) computer with drop analysis software.
Schematic diagram of the tilted-plate contact-angle measurement system: (1) gas cylinder (H2 or CO2); (2) HPHT ISCO pump for gas flow control; (3) HPHT reactor for mixing the live brine; (4) HPHT ISCO pump for controlling the brine flow; (5) IFT Hastelloy cell with a tilted plate inside; (6) HPHT ISCO pump for controlling the gas flow inside the cell; (7) light source; (8) side view of the IFT Hastelloy cell; (9) high-resolution camera; (10) computer with drop analysis software.
Calculating the Equilibrium Contact Angle, Capillary Entry Pressure, and Maximum Gas Column Height
In this study, the equilibrium contact angle () was calculated as a function of and from the measurements of Ali et al. (2021c) and Arif et al. (2016) by using the empirical approach described by Tadmor (2004) based on Young’s equation and Neumann’s equation of state (Li and Neumann 1992; Kwok and Neumann 1999), given here as Eq. 1:
The gas/liquid/solid capillary pressure () has many definitions depending on the pore throat interface and hydrodynamic situation (Iglauer et al. 2015; Zhang and Wang 2022). The most basic definition treats the capillary pressure as the difference between the nonwetting phase (e.g., for a gas) and wetting phase (e.g., for a liquid), as shown in Eq. 4 (Derrell A. 1966):
A nonwetting phase (i.e., CO2 and H2) cannot invade the caprock until the pressure drop exceeds a certain threshold, known as the capillary entry pressure . The capillary entry pressure can be approximated by the Laplace equation, as shown in Eq. 5:
where is the brine/gas IFT, is the receding contact angle, and is the effective pore throat radius of the caprock.
The capillary sealing pressure works against the buoyancy pressure exerted by the gas column height, and, when the buoyancy pressure exceeds the , the generated negative suction force will cause the invasion of gas into the caprock. If the pressure holds, however, the gas will be trapped structurally beneath the caprock (Zhang and Wang 2022). In connected reservoirs where the pressure gradient () across the caprock is equal to the buoyancy pressure gradient () (Fig. 3), the maximum stable storage column of gas () is equal to the hydrostatic trapping equilibrium, as given in Eq. 6:
Schematic illustrations of (a) a connected saline aquifer under hydrostatic equilibrium conditions, and (b) a disconnected depleted gas reservoir in which the reservoir pressure () is lower than the surrounding pressure () at the same depth.
Schematic illustrations of (a) a connected saline aquifer under hydrostatic equilibrium conditions, and (b) a disconnected depleted gas reservoir in which the reservoir pressure () is lower than the surrounding pressure () at the same depth.
where is the gravitational acceleration, and and are the densities of the liquid and gas phases, respectively. In this work, the capillary sealing efficiency of the caprock was assessed by using the and values calculated from Eqs. 4 and 5 using the contact angle data sets for the caprock/gas/brine systems provided by Ali et al. (2021a, 2021c, 2022c) and Arif et al. (2016) to comprehend the efficiency, safety, and structural trapping capacity.
Results and Discussion
Wettability is an essential parameter that drives the ability of any gas to dispense into geological rocks, determining the flow pattern, gas injection, and withdrawal behavior, along with the thermodynamics, storage potential, and storage safety (Yekeen et al. 2021; Zeng et al. 2022). In this background, the sealing potential against upward movement of any gas (CO2, CH4, and H2) for permanent or temporary immobilization in the reservoir formation is provided by a top layer of impermeable rock (caprock) (Iglauer 2022). Thus, it is critical to measure the sealing efficiency of the caprock for the successful structural storage of respective gases (Al-Bazali et al. 2005; Cranganu and Soleymani 2015; Espinoza and Santamarina 2017). Actual geostorage formations are anoxic and reductive due to the presence of organic acids (Lundegard and Kharaka 1994; Akob et al. 2015). Therefore, the effects of various geological conditions such as pressure, temperature, organic acid concentration, and alkyl chain length on the wettability and capillary sealing efficiency of a proxy caprock are identified herein based on the experimental results of previous studies. In the present work, the capillary sealing efficiency was computed for caprocks with two typical pore throat radii of 5 nm and 10 nm by using data from Watson et al. (2005), Armitage et al. (2011), and Hosseini et al. (2022). Similarly, the data for H2/brine and CO2/brine were taken from Ali et al. (2022b), Chow et al. (2018), and Pan et al. (2021b), while the H2 and CO2 wettability data were obtained from Ali et al. (2021c) and Arif et al. (2016), respectively.
The Influence of Pressure and Temperature on the Wettability, Capillary Sealing Efficiency, and Gas Column Height in Mica/Gas/Brine Systems
The temperature and pressure of a formation increase with depth (Pan et al. 2021a). Hence, the conditions in the experiments by Ali et al. (2021c) and Arif et al. (2016) were selected based on typical reservoir conditions (5–20 MPa; 308–343 K). The reported receding () and advancing () contact angles for H2 and CO2 in the pure mica/gas/brine systems are plotted in Fig. 4 , which clearly indicates that the contact angles increase as the pressure increases and the temperature decreases. This is attributed to the increase in the intermolecular forces between the gas and solid substrate (in the case of pressure change) and the decrease in the interfacial energy between the gas and the solid substrate (in the case of temperature change) (Zeng et al. 2022). Furthermore, the effects of pressure and temperature on H2/brine wettability are less pronounced than those on the CO2/brine wettability due to the high difference in density between H2 and CO2 (Heinemann et al. 2018). For instance, at 308 K and 20 MPa, the advancing contact angle () reaches 65° for the mica/H2/brine system compared with 110° for the mica/CO2/brine system, with the latter representing a very weak water-wet condition (i.e., a CO2-wet condition).
Previously reported advancing and receding contact angles as a function of pressure and temperature for the pure mica/H2/brine system (Ali et al. 2021c) and the pure mica/CO2/brine systems (Arif et al. 2016).
Previously reported advancing and receding contact angles as a function of pressure and temperature for the pure mica/H2/brine system (Ali et al. 2021c) and the pure mica/CO2/brine systems (Arif et al. 2016).
The calculated equilibrium contact angles () for H2 and CO2 are plotted in Fig. 5 and listed in Table A-1 of the appendix. Here, similar trends to those of the advancing and receding contact angles shown in Fig. 4 are observed. This is consistent with the literature (Sarmadivaleh et al. 2015; Al-Yaseri and Jha 2021; Ali et al. 2021b, 2022c; Hashemi et al. 2021; Hosseini et al. 2022). These investigations have shown that the wettability of rock becomes very weak (intermediate water-wet to gas-wet) at high pressures for rock/gas/brine systems. Previous studies have also shown that higher , , and values are measured at high pressures for various rocks (Arif et al. 2021; Al-Yaseri et al. 2022b).

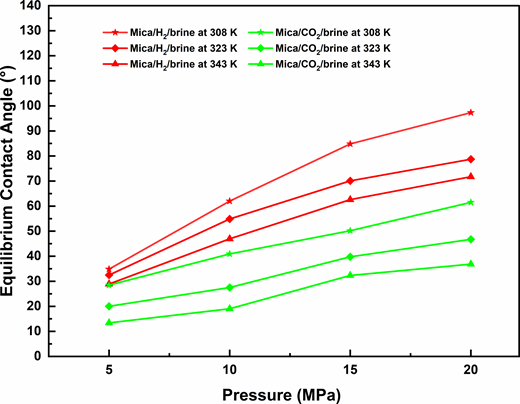

Calculated equilibrium contact angles as a function of pressure and temperature for the pure mica/H2/brine and pure mica/CO2/brine systems.
Calculated equilibrium contact angles as a function of pressure and temperature for the pure mica/H2/brine and pure mica/CO2/brine systems.
The and values were calculated for this study using the typical values of 5 nm and 10 nm (Arif et al. 2016), and the results are plotted in Figs. 6 and 7 . These indicate an overall decrease in both and with the increase in pressure at a constant temperature, which is attributed to the decrease in the interfacial forces (i.e., , , and ), the density difference (), and the water wettability (i.e., ) of the mica surface. Because is proportionally related to both and (Eqs. 8 and 9), the results typically demonstrate lower values at higher for both the mica/H2 and mica/CO2 systems. This implies a decrease in the capillary sealing efficiency and storage capacity of the mica samples with the increase in pressure. However, the variations in the and values according to pore size () are seen to be higher for the mica/H2 system than for the mica/CO2 system. In detail, the mica/CO2 wettability shows larger overall decreases in and with the increase in temperature and pressure. At a fixed temperature of 308 K, the and values of the pure mica/CO2/brine system exhibit their maximum declines (to become close to zero) when the pressure is increased from 5 MPa to 20 MPa. A negative suction flow of the CO2 into the mica pores can occur due to the capillary forces of the strongly CO2-wet mica at pressures of 20 MPa and above, which can lead to leakage of the CO2. By contrast, the and values of the pure mica/H2 system decline less significantly with the increase in pressure and temperature, thus indicating better sealing conditions () and higher storage capacity () than the mica/CO2 system. For instance, the average and values of the mica/H2/brine system at r = 5 nm, T = 308 K, and P = 10 MPa are calculated to be 23 MPa and 2300 m, respectively, compared with 7 MPa and 700 m for the mica/CO2/brine system. These differences between the sealing efficiencies and storage capacities of the mica/H2 and mica/CO2 systems are mainly attributed to the significant difference in the densities of H2 and CO2 (Heinemann et al. 2021; Zivar et al. 2021). The previous results were obtained from pure mica/gas/brine systems. However, this is not the case for real geological formations, where organic molecules in anoxic conditions exist, which affect the sealing efficiency significantly as highlighted by Akob et al. (2015) and Lundegard and Kharaka (1994). The effect of organic molecules on capillary sealing efficiency is examined in the following subsection.
Interpolated 3D contour plots of the capillary entry pressure as a function of pressure, temperature, and pore throat radii for the pure mica/H2/brine system (a) and the pure mica/CO2/brine system (b).
Interpolated 3D contour plots of the capillary entry pressure as a function of pressure, temperature, and pore throat radii for the pure mica/H2/brine system (a) and the pure mica/CO2/brine system (b).
Maximum static height of the gas column () vs. pressure for (a) the pure mica/H2/brine system and (b) the pure mica/CO2/brine system.
Maximum static height of the gas column () vs. pressure for (a) the pure mica/H2/brine system and (b) the pure mica/CO2/brine system.
The Influence of Organic Acids on the Wettabilities, Capillary Sealing Efficiencies, and Gas Column Heights of the Mica/Gas/Brine Systems
The presence of organic matter in the subsurface formation has a significant impact on the rock/gas/brine interfacial properties (Ali et al. 2021c). Several investigators have studied the effects of contamination and adsorption of organic acids on the wettability of the rock surface under reservoir conditions (Mallants et al. 2001; Bui et al. 2018; Ali et al. 2022b). A small concentration of organic matter adsorbed on rock surfaces can change their rock wettability from water-wet to gas-wet. Hence, the mica substrates used as proxy caprocks can be aged with organic acids to achieve more realistic conditions, comparable with those of actual underground reservoirs (Lundegard and Kharaka 1994; Akob et al. 2015). Organic acids generally contain between 2 and 26 carbon atoms (Ali et al. 2020b), as summarized in Table 1 . The synthetic organic acids used for contact angle measurements in previous studies cover the same overall range (Mallants et al. 2001; Oldenburg and Pan 2013). In those studies, the mica substrates were aged in various concentrations of the selected organic acids for 7 days, and the and values were then measured at 15 MPa and 323 K for both the mica/H2 (Ali et al. 2021c) and mica/CO2 (Arif et al. 2016) systems. The previously reported measurements are plotted in Fig. 8 , and the newly-calculated equilibrium contact angles at the various concentrations of each acid are plotted in Fig. 9 . Here, the wettability exhibits a strong shift from water-wet to gas-wet for both H2 and CO2 as the organic acid concentration is increased from to mol/L. As observed above in the absence of organic acid, the shift in mica wettability toward gas-wet conditions is more significant in the CO2/brine system than in the H2/brine system due to the very low density of H2 compared with that of CO2. In addition, lignoceric acid, having the longest alkyl chain (largest number of carbon atoms), is seen to have the greatest effect on the sealing efficiency and storage capacity among all the tested organic acids.
Organic acids that were used for investigating the wettability of the mica/H2 (Ali et al. 2021c, 2022c) and mica/CO2 systems (Arif et al. 2016; Ali et al. 2020a).
Acid . | Formula . | Molecular Mass (g/mol) . | Number of Carbon Atoms . | pH (pKa) . | State . | Chemical Structure . |
---|---|---|---|---|---|---|
Lignoceric | C24H48O2 | 368.63 | 24 | 7.4 | Solid | ![]() |
Stearic | C18H36O2 | 284.4772 | 18 | 6 | Solid | ![]() |
Lauric | C12H24O2 | 200.318 | 12 | 5.3 | Solid | ![]() |
Hexanoic | C6H12O2 | 116.158 | 6 | 4 | Liquid | ![]() |
Acid . | Formula . | Molecular Mass (g/mol) . | Number of Carbon Atoms . | pH (pKa) . | State . | Chemical Structure . |
---|---|---|---|---|---|---|
Lignoceric | C24H48O2 | 368.63 | 24 | 7.4 | Solid | ![]() |
Stearic | C18H36O2 | 284.4772 | 18 | 6 | Solid | ![]() |
Lauric | C12H24O2 | 200.318 | 12 | 5.3 | Solid | ![]() |
Hexanoic | C6H12O2 | 116.158 | 6 | 4 | Liquid | ![]() |
Plots of the advancing and receding contact angles vs. the negative log of organic acid concentration for various alkyl chain lengths in (a) the mica/H2 system (Ali et al. 2021c, 2022c) and (b) the mica/CO2 system at 15 MPa and 323 K (Ali et al. 2020a).
Plots of the advancing and receding contact angles vs. the negative log of organic acid concentration for various alkyl chain lengths in (a) the mica/H2 system (Ali et al. 2021c, 2022c) and (b) the mica/CO2 system at 15 MPa and 323 K (Ali et al. 2020a).
Plots of the calculated equilibrium contact angle vs. the negative log of organic acid concentration for various alkyl chain lengths in the mica/H2 and mica/CO2 systems at 15 MPa and 323 K.
Plots of the calculated equilibrium contact angle vs. the negative log of organic acid concentration for various alkyl chain lengths in the mica/H2 and mica/CO2 systems at 15 MPa and 323 K.
The calculated and values are plotted against the negative log of organic acid concentration at pore sizes () of 5 nm and 10 nm for the mica/H2 system in Figs. 10 and 11 and for the mica/CO2 system in Figs. 12 and 13 . Thus, both the and values are seen to reach close to zero for the mica/H2 system with mol/L lignoceric acid, while negative values are observed for the mica/CO2 system, particularly when = 10 nm. In general, these results suggest that a lower pore size provides better sealing efficiency and a higher gas column height in both systems.
Plots of the calculated capillary entry pressure () vs. the negative log of organic acid concentration for the mica/H2 system at 15 MPa and 323 K with effective pore throat radii of 5 nm and 10 nm.
Plots of the calculated capillary entry pressure () vs. the negative log of organic acid concentration for the mica/H2 system at 15 MPa and 323 K with effective pore throat radii of 5 nm and 10 nm.
Calculated maximum static column heights of H2 in the organic-aged mica samples at 15 MPa and 323 K at effective pore throat radii of (a) 5 nm and (b) 10 nm.
Calculated maximum static column heights of H2 in the organic-aged mica samples at 15 MPa and 323 K at effective pore throat radii of (a) 5 nm and (b) 10 nm.
Plots of the calculated capillary entry pressure of CO2 in the organically aged mica samples at 15 MPa and 323 K with effective pore throat radii of 5 nm and 10 nm.
Plots of the calculated capillary entry pressure of CO2 in the organically aged mica samples at 15 MPa and 323 K with effective pore throat radii of 5 nm and 10 nm.
Calculated maximum static column heights of CO2 in the organic-aged mica samples at 15 MPa and 323 K with effective pore throat radii of (a) 5 nm and (b) 10 nm.
Calculated maximum static column heights of CO2 in the organic-aged mica samples at 15 MPa and 323 K with effective pore throat radii of (a) 5 nm and (b) 10 nm.
The Influence of Alumina Nanofluids on the Wettabilities, Capillary Sealing Efficiencies, and Gas Column Heights of the Mica/CO2/Brine Systems
Wettability modifiers are often recommended for improving the wettability of reservoir rocks and caprocks before gas injection for storage (Ali et al. 2021a). Therefore, recent studies have investigated the addition of various concentrations of nanofluids to rock surfaces to enhance the wettabilities of high organic-content rocks (Akob et al. 2015; Ali et al. 2022b). The advancing and receding contact angle measurements that were obtained in the previous study by Ali et al. (2021a) are reproduced here in Fig. 14a . For this work, the equilibrium contact angles were also calculated for the various organic acids, and the results are presented in Fig. 14b . These results indicate that the aging with alumina nanofluid at concentrations of 0.05–0.75 wt% is very effective in reversing the hydrophobic conditions caused by the presence of organic acids, thus making the substrate more hydrophilic. However, while all of the nanofluid concentrations lead to a decrease in wettability, the maximum degree of change is observed at 0.25 wt% (Fig. 14a).
Measured advancing and receding contact angles (a) and the calculated equilibrium contact angles (b) in various organic-aged mica/CO2/brine systems as a function of alumina nanofluid concentration at 15 MPa and 323 K [data in part (a) are taken from Ali et al. (2021a)].
Measured advancing and receding contact angles (a) and the calculated equilibrium contact angles (b) in various organic-aged mica/CO2/brine systems as a function of alumina nanofluid concentration at 15 MPa and 323 K [data in part (a) are taken from Ali et al. (2021a)].
In this work, the effects of alumina oxide (Al2O3) nanoparticles on the sealing efficiencies of the mica substrates are further evaluated by using the above numerical results of Ali et al. (2021a) to calculate the and values at 15 MPa and 323 K for assumed values of 5 nm and 10 nm. As shown in Figs. 15 and 16 , the organic-aged mica substrates exhibit enhanced sealing efficiencies and storage capacities in the presence of the nanofluids. For instance, in the case of lignoceric acid at a concentration of mol/L, the capillary sealing efficiency () increases significantly from approximately –2 to 3.5 MPa as the concentration of nanoalumina is increased from 0.05 to 0.25 wt% (Fig. 15). At the same time, the increases from –250 m to about 350 m (Fig. 16), thereby preventing the potential negative suction of the stored CO2.
Calculated CO2 capillary entry pressure () values of various organic-aged mica samples with effective pore throat radii of 5 nm and 10 nm at 15 MPa and 323 K in the presence of various concentrations of alumina nanofluid.
Calculated CO2 capillary entry pressure () values of various organic-aged mica samples with effective pore throat radii of 5 nm and 10 nm at 15 MPa and 323 K in the presence of various concentrations of alumina nanofluid.
Calculated maximum static column heights of CO2 in the various organic-aged mica samples at 15 MPa and 323 K in the presence of various concentrations of alumina nanofluid, assuming effective pore throat radii of (a) 5 nm and (b) 10 nm.
Calculated maximum static column heights of CO2 in the various organic-aged mica samples at 15 MPa and 323 K in the presence of various concentrations of alumina nanofluid, assuming effective pore throat radii of (a) 5 nm and (b) 10 nm.
Conclusions
An analysis of the capillary sealing efficiency and storage capacity of caprock is crucial for determining the potential for the structural entrapment and underground storage of H2 and CO2 (Iglauer et al. 2015; Espinoza and Santamarina 2017). Therefore, previously published contact angle measurements on the proxy caprock mica (Arif et al. 2016; Ali et al. 2020a, 2021c, 2022c) were used herein to calculate the capillary entry pressure () and static column height of the gas (). In addition, the effects of key parameters such as pressure, temperature, and pore size (using typical values of = 5 nm and 10 nm) were demonstrated, along with those of organic acids and alumina nanofluids, on the wettability, capillary sealing efficiency, and static column height of the gas. The present results indicated that the sealing efficiency and storage capacity for H2 and CO2 decrease with the increase in pressure and surface concentration of organic acid but increase with increasing temperature. The analysis demonstrated a theoretical inverse relationship between the capillary entry pressure and the pore throat radius. Thus, the smaller the pore size, the more suitable the conditions are for sealing and storage capacity. Furthermore, the wettability and sealing efficiency of the organic-aged mica/CO2 system were improved by the addition of nanoalumina, with an optimal nanofluid concentration of 0.25 wt%. In brief, this work has provided a detailed theoretical workflow for assessing the influence of various parameters on the wettability, sealing efficiency, and storage capacity of mica substrates (as a proxy caprock) for the safe and secure geological storage of H2 and CO2.
Nomenclature
- g
gravitational acceleration, m/s2
maximum height of the gas column, m
- pce
capillary entry pressure, MPa
- pg
gas pressure, MPa
- pl
liquid pressure, MPa
- r
effective pore throat radius, m
- γlg
IFT between gas and liquid, mN/m
- γsg
IFT between solid and gas, mN/m
- γsl
IFT between gas and liquid, mN/m
- ΔPbuoy
pressure difference exerted by buoyancy, MPa
- θa
advancing contact angle, degrees
- θe
equilibrium contact angle, degrees
- θr
receding contact angle, degrees
- ρg
gas density, g/cm3
- ρl
liquid density, g/cm3
Tadmore advancing correlation parameter
Tadmore receding correlation parameter
Acknowledgements
The authors would like to acknowledge King Abdullah University for Science and Technology (KAUST) for supporting this work by the Research Funding Office under Award No. 4357.
Appendix A
Experimental and calculated equilibrium contact angles of the mica/H2/brine and mica/CO2/brine systems as a function of temperature and pressure.
Mica/H2/Brine . | Mica/CO2/Brine . | ||||||
---|---|---|---|---|---|---|---|
T (K) . | P (MPa) . | Experimental Contact Angle (degrees) . | Predicted Contact Angle (degrees) . | T (K) . | P (MPa) . | Experimental Contact Angle (degrees) . | Predicted Contact Angle (degrees) . |
308 | 5 | 35.9 | 34.8 | 308 | 5 | 28.5 | 27.6 |
10 | 60.1 | 62.0 | 10 | 40.9 | 42.1 | ||
15 | 87.3 | 84.8 | 15 | 50.2 | 51.2 | ||
20 | 99.2 | 97.3 | 20 | 61.5 | 62.9 | ||
323 | 5 | 32.5 | 33.5 | 323 | 5 | 20.0 | 20.6 |
10 | 54.9 | 56.5 | 10 | 27.5 | 26.7 | ||
15 | 70.1 | 68.0 | 15 | 39.8 | 40.8 | ||
20 | 78.7 | 80.4 | 20 | 46.7 | 48.1 | ||
343 | 5 | 28.9 | 29.7 | 343 | 5 | 13.4 | 13.8 |
10 | 46.9 | 45.8 | 10 | 19.0 | 19.4 | ||
15 | 62.6 | 64.2 | 15 | 32.3 | 31.6 | ||
20 | 71.7 | 69.6 | 20 | 36.9 | 38.0 |
Mica/H2/Brine . | Mica/CO2/Brine . | ||||||
---|---|---|---|---|---|---|---|
T (K) . | P (MPa) . | Experimental Contact Angle (degrees) . | Predicted Contact Angle (degrees) . | T (K) . | P (MPa) . | Experimental Contact Angle (degrees) . | Predicted Contact Angle (degrees) . |
308 | 5 | 35.9 | 34.8 | 308 | 5 | 28.5 | 27.6 |
10 | 60.1 | 62.0 | 10 | 40.9 | 42.1 | ||
15 | 87.3 | 84.8 | 15 | 50.2 | 51.2 | ||
20 | 99.2 | 97.3 | 20 | 61.5 | 62.9 | ||
323 | 5 | 32.5 | 33.5 | 323 | 5 | 20.0 | 20.6 |
10 | 54.9 | 56.5 | 10 | 27.5 | 26.7 | ||
15 | 70.1 | 68.0 | 15 | 39.8 | 40.8 | ||
20 | 78.7 | 80.4 | 20 | 46.7 | 48.1 | ||
343 | 5 | 28.9 | 29.7 | 343 | 5 | 13.4 | 13.8 |
10 | 46.9 | 45.8 | 10 | 19.0 | 19.4 | ||
15 | 62.6 | 64.2 | 15 | 32.3 | 31.6 | ||
20 | 71.7 | 69.6 | 20 | 36.9 | 38.0 |
